Board Scans - Set 1

  • The BIOS and battery were removed
  • Components D1, D2 and R10 are missing from the bottom of the main board (under the backup area)
  • The heat sink on the audio amp was removed before scanning
  • Any standoffs seen are related to the scanning and are not part of the board itself
main board top

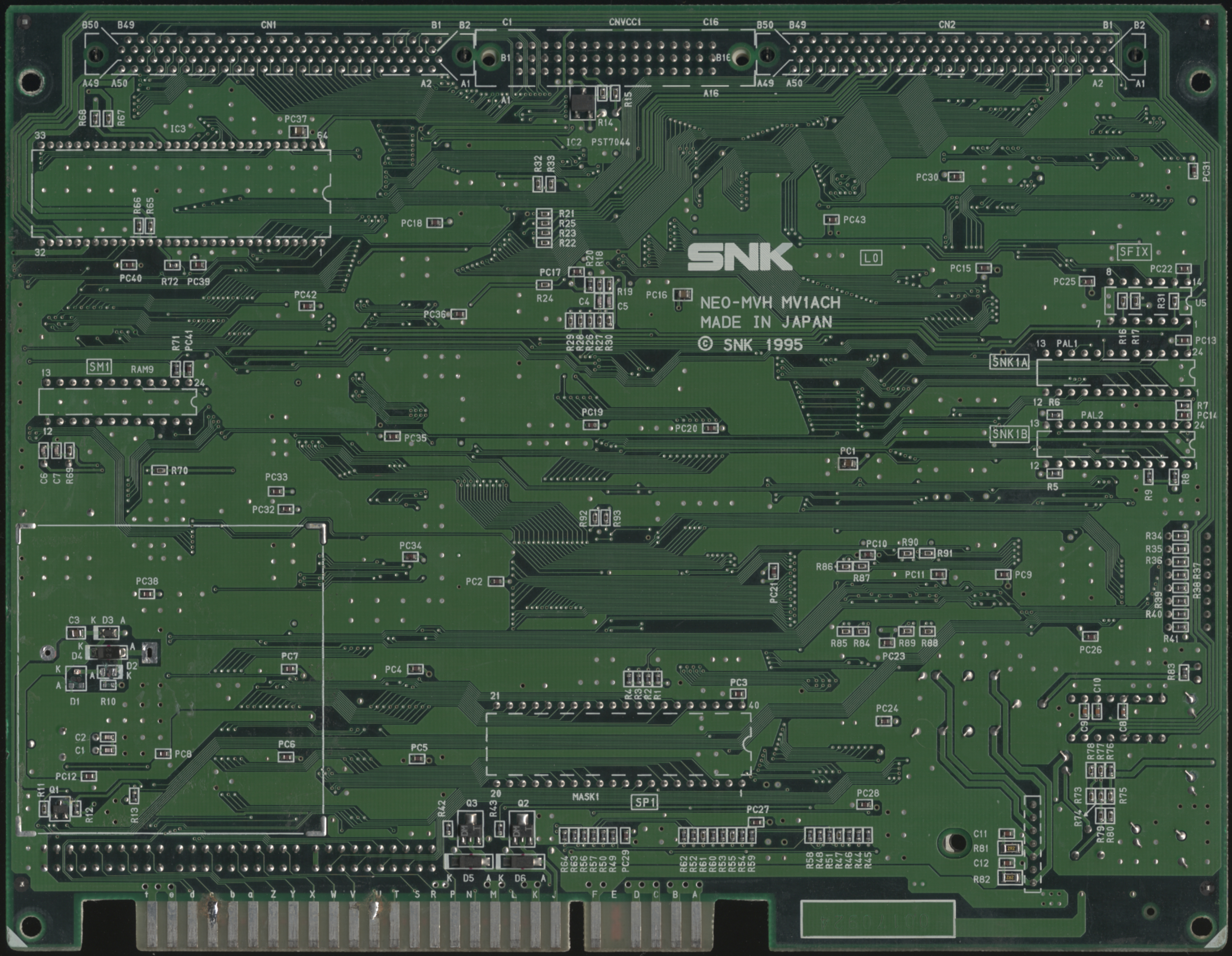

main board bottom
slot board front
slot board back
