MV1B

From MVS
Jump to navigation Jump to search

Board Scans - Set 1

This MV1B was from an Iritating Maze kit. The only real difference between this and a normal MV1B should be the bios. You will note its just a generic Toshiba chip, while normal MV1B's the bios is labeled as SP-J3, SP-S3, or SP-U3.

  • The battery and heat sink on the audio amp were removed prior to scanning
  • The 2 standoffs seen in the first scan are related to the scanning and are not part of the board itself

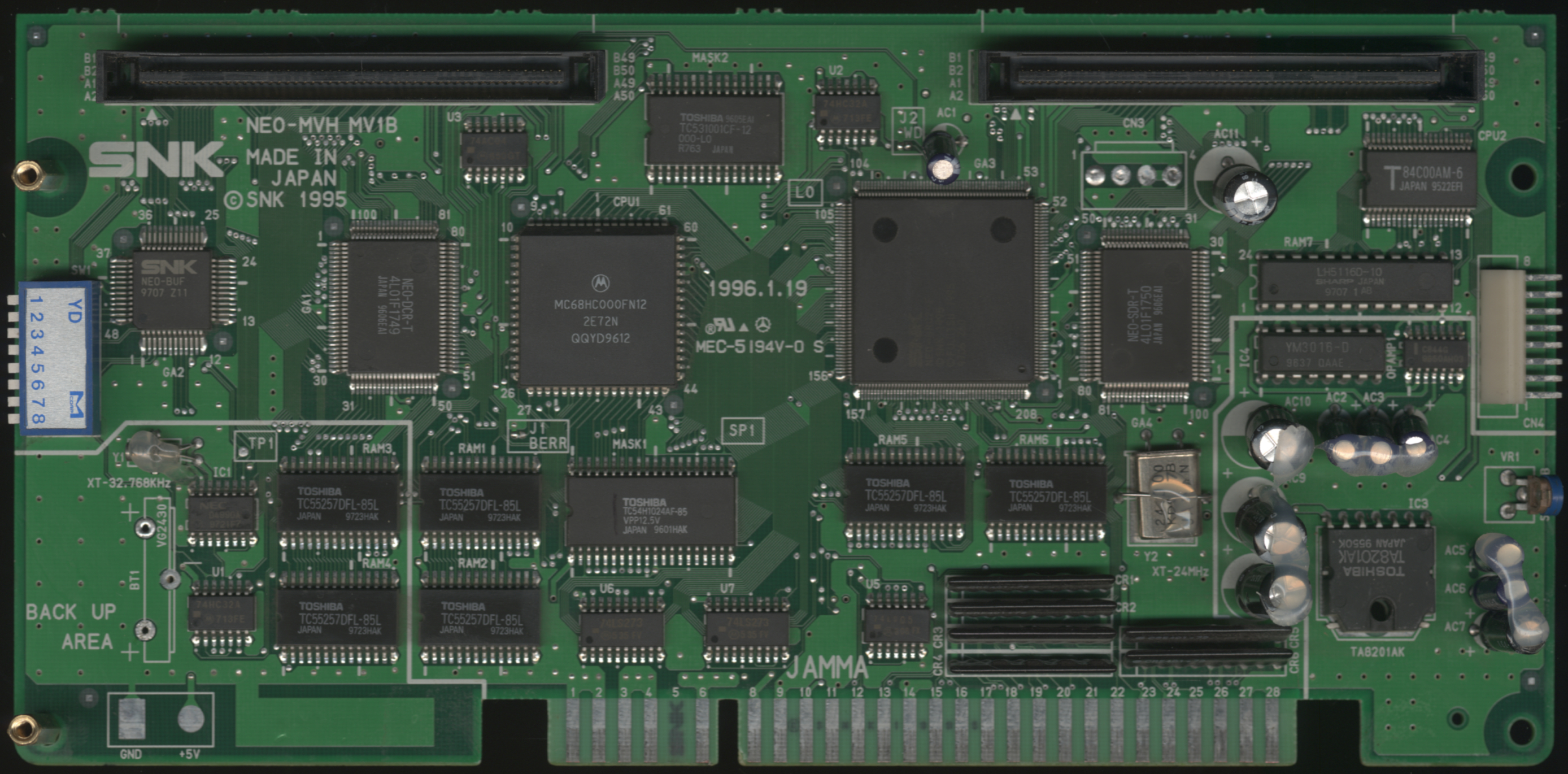

main board top
main board bottom
slot board front
slot board back
